HOME
>
Products
>
Antenna
>
WiFi Antenna
(2.4 / 5 GHz)
WiFi Antenna
(2.4 / 5 GHz)

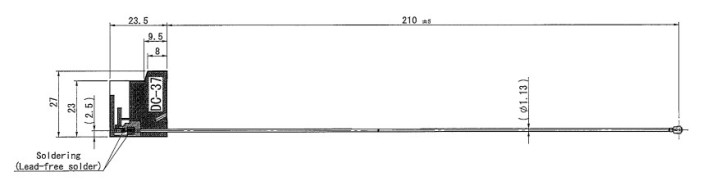

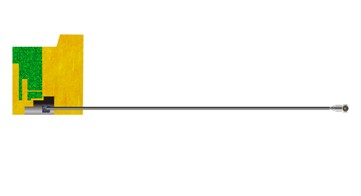

產品編號 : (Model No)
TD16067A0C0
產品名稱 : (Product Name)
ANTDC-067A0
頻
率 : (Frequency)
2.4~2.5 GHz
5.15~5.825 GHz
阻
抗 : (Impedence)
50Ω
駐 波 比 : (VSWR)
< 3.0
增
益 : (GAIN)
2.4~2.5 GHz: -3 dBi
5.15~5.825 GHz: -1 dBi
